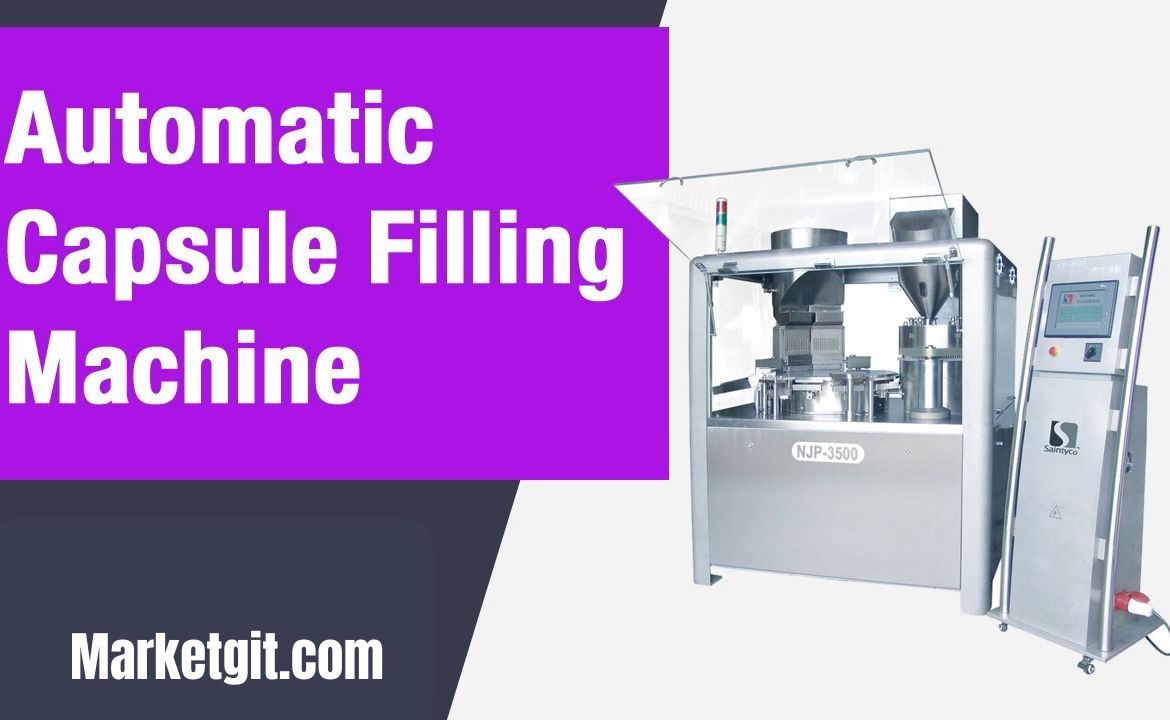

Understanding Automatic Capsule Filling Machines: A Complete Guide

16

In today’s fast-paced pharmaceutical and nutraceutical industries, automatic capsule filling machines are indispensable. These sophisticated machines are engineered to fill hundreds to thousands of capsules per minute with incredible precision and minimal human intervention. Whether you’re manufacturing supplements, medications, or herbal powders, an automatic capsule filling machine can transform your production line, improving consistency, speed, and efficiency.

This article provides a comprehensive look into automatic capsule filling machines, including how they work, their components, benefits, operational steps, and key considerations for choosing the right one for your business.

What is an Automatic Capsule Filling Machine?

An automatic capsule filling machine is a piece of industrial equipment designed to fill empty capsules with various substances—typically powders, pellets, granules, or liquids—automatically and at high speed. These machines are commonly used in the pharmaceutical, nutraceutical, and herbal medicine industries.

Unlike manual or semi-automatic machines, which require significant human input, automatic machines can handle every stage of capsule filling—from separating the capsules to closing and ejecting them—with minimal supervision.

Key Components and How They Work

Understanding the parts of an automatic capsule filling machine helps you grasp its efficiency and sophistication. Here are the main components and their functions:

1. Capsule Hopper: Stores empty capsules before feeding them into the machine.
2. Capsule Orientation System: Aligns capsules so that the body and cap are in the correct position for separation.
3. Capsule Separation Station: Uses vacuum suction to separate the cap from the body of the capsule.
4. Filling Station: Dispenses the product (powder, pellet, or liquid) into the capsule body using dosing discs, augers, or pistons.
5. Tamping Station: Compacts the product inside the capsule to ensure uniform weight and proper fit.
6. Capsule Locking Station: Rejoins the cap with the filled capsule body.
7. Ejection Station: Pushes the finished capsule out into a collection bin or conveyor.
8. Control Panel: The digital interface where operators can set parameters such as speed, dosing weight, and batch size.

Some advanced models also include features like weight checking systems, rejection stations for defective capsules, and real-time monitoring for quality control.

Types of Capsules Supported

Automatic capsule filling machines are compatible with different types of capsules:

• Gelatin Capsules: Common in pharmaceutical applications.
• Vegetarian Capsules (HPMC or pullulan): Suitable for vegan or plant-based products.
• Sizes Supported: Most machines can handle a wide range of capsule sizes, from 000 (largest) to 5 (smallest).

Applications

These machines are used in a wide range of industries, including:

• Pharmaceuticals: For prescription and over-the-counter medication.
• Nutraceuticals: For vitamins, minerals, and herbal supplements.
• Cosmetics: For encapsulating powders or oils used in skin and hair products.
• Food & Beverage: For functional ingredients like probiotics or enzymes.

Benefits of Automatic Capsule Filling Machines

1. High Production Speed

Most automatic machines can fill between 12,000 to 200,000 capsules per hour, depending on the model. This makes them ideal for large-scale production.

2. Precision and Accuracy

Automated dosing ensures consistent fill weights and reduces variability. This is critical for dosage-sensitive products like pharmaceuticals.

3. Labor Efficiency

One operator can manage the entire process, drastically reducing labor costs and human error.

4. Hygiene and Compliance

Automatic machines are designed with Good Manufacturing Practices (GMP) in mind. Stainless steel builds, closed systems, and dust extraction features help maintain hygiene and reduce cross-contamination risks.

5. Adaptability

Many machines are modular and customizable, allowing businesses to switch between products, change capsule sizes, or modify fill materials with ease.

Step-by-Step Operation of an Automatic Capsule Filling Machine

Here’s a simplified breakdown of the typical operation process:

Step 1: Setup

• Install the appropriate tooling for the capsule size.
• Load empty capsules into the hopper.
• Fill the product hopper with the desired powder or pellets.
• Program the machine via the control panel (set speed, capsule size, fill weight, etc.).

Step 2: Capsule Separation

The machine pulls capsules from the hopper, aligns them correctly, and uses vacuum pressure to separate the cap and body.

Step 3: Dosing and Filling

The machine fills the body of the capsule using the selected filling method (tamping, dosator, or auger) depending on the material.

Step 4: Tamping/Compacting

If using powder, a tamping mechanism compacts the material to achieve consistent weight and density.

Step 5: Rejoining

The cap and body are rejoined using mechanical force to ensure a secure fit.

Step 6: Ejection and Collection

Completed capsules are ejected into a container or conveyor for packaging.

Choosing the Right Automatic Capsule Filling Machine

Here are key factors to consider:

1. Production Capacity

Determine your batch size and desired output. Machines range from semi-automated (5,000 capsules/hour) to high-speed models (200,000 capsules/hour).

2. Type of Material

Different materials (powders, granules, liquids) require specific filling mechanisms. Make sure the machine is compatible with your product type.

3. Capsule Sizes

Choose a machine that supports the capsule sizes you plan to use. Some models offer interchangeable parts for flexibility.

4. Ease of Cleaning

Machines with quick disassembly, stainless steel bodies, and built-in cleaning mechanisms reduce downtime between batches.

5. Automation Features

Look for machines with features like:

• Auto-rejection of faulty capsules
• Integrated dust collectors
• Real-time weight monitoring
• Touchscreen interfaces

6. Regulatory Compliance

Ensure the machine meets GMP, FDA, or other regulatory requirements relevant to your industry and region.

Maintenance and Safety

Regular maintenance ensures longevity and consistent performance. Follow the manufacturer’s guide for:

• Lubrication
• Filter and hose replacements
• Sensor calibration
• Cleaning protocols

Safety features like emergency stop buttons, interlocks, and overload protection are crucial in industrial environments.

Conclusion

Automatic capsule filling machines are a game-changer for businesses involved in high-volume capsule production. They offer unmatched speed, precision, and efficiency—helping manufacturers meet growing demand while maintaining product quality and regulatory compliance.

Whether you’re scaling up a nutraceutical brand or managing pharmaceutical production, investing in the right automatic capsule filling machine is a critical step toward sustainable, efficient, and high-quality operations.
