Water Cooling for AI Servers: What You Need to Know

202

Servers for AI differ fundamentally from traditional server infrastructure. The main reason is the extreme concentration of computing power within a single node and a single rack. Modern GPUs, accelerators, and specialized AI chips operate at heat dissipation levels for which conventional cooling approaches were never designed.

In the past, performance growth was accompanied by a moderate increase in thermal load. AI has changed this relationship. A single server can contain 4, 8, or even 16 accelerators, each consuming hundreds of watts. As a result, heat density grows faster than the ability of air cooling to remove heat.

Air-based systems begin to hit limits not only in terms of the physical constraints of heat transfer, but also the architecture of data centers themselves. Increasing airflow velocity, deploying more powerful fans, and adding localized cooling solutions deliver diminishing returns while consuming more energy and space.

Heat density and thermal challenges of modern AI workloads

The key challenge of AI infrastructure is that a single rack can host a workload comparable to dozens of traditional servers.

The main sources of thermal stress in AI servers include:

• GPUs and AI accelerators with high TDP
• dense component layouts
• continuous load with no idle cycles
• chip sensitivity to overheating and temperature fluctuations

Unlike typical enterprise workloads, AI tasks rarely operate in “waves.” Model training, inference, and batch processing create a stable, sustained thermal load. This leads to heat accumulation inside the chassis and the rack, even when the average air temperature in the data hall formally remains within acceptable limits.

When thermal thresholds are exceeded, the system is forced to reduce clock speeds, limit power delivery, or redistribute workloads. In the context of AI, this results in direct performance losses, longer computation times, and reduced predictability of infrastructure behavior.

Why air cooling no longer scales for AI infrastructure

Air cooling remains effective for a wide range of use cases, but it has fundamental limitations that become critical specifically for AI.

First, air has a much lower heat capacity compared to liquids. To remove the same amount of heat, it requires either significantly higher airflow or a much larger temperature differential. Both approaches scale poorly in high-density server environments.

Second, increasing airflow leads to:

• higher fan power consumption
• increased noise and vibration
• more complex rack layouts
• uneven cooling of components

Third, air-based systems struggle with localized hot spots. Even with cold aisle containment in place, individual chips can overheat due to airflow path characteristics inside the chassis.

As a result, air cooling stops being a scalable solution for high-density AI clusters. It either requires disproportionate investment or limits the growth of computing capacity.

What water cooling is and how it works in AI servers

Water cooling in the context of AI servers is an engineering approach to heat removal in which liquid is used as the primary heat transfer medium instead of air. The key advantage of water and other liquids is their high heat capacity and thermal conductivity. This makes it possible to remove heat directly at the point where it is generated, rather than attempting to extract it from the entire volume of a server or rack.

In a typical water cooling setup:

• heat is removed directly from GPUs, CPUs, or other high-temperature components;
• the liquid circulates within a closed loop;
• heat is transferred to a heat exchanger and carried outside the server area;
• component temperatures remain stable even under continuous load.

For AI servers, this is critical. Instead of dealing with the consequences of overheating, the system addresses the root cause – high heat density at the chip level. Importantly, modern liquid cooling systems are designed with fault tolerance in mind. They use sealed loops, pressure and temperature sensors, and automatic shutdown mechanisms in case of anomalies.

Main types of water cooling for AI environments

There are several approaches to liquid cooling, each addressing different requirements. In AI infrastructure, three options are most commonly considered.

Direct-to-chip liquid cooling

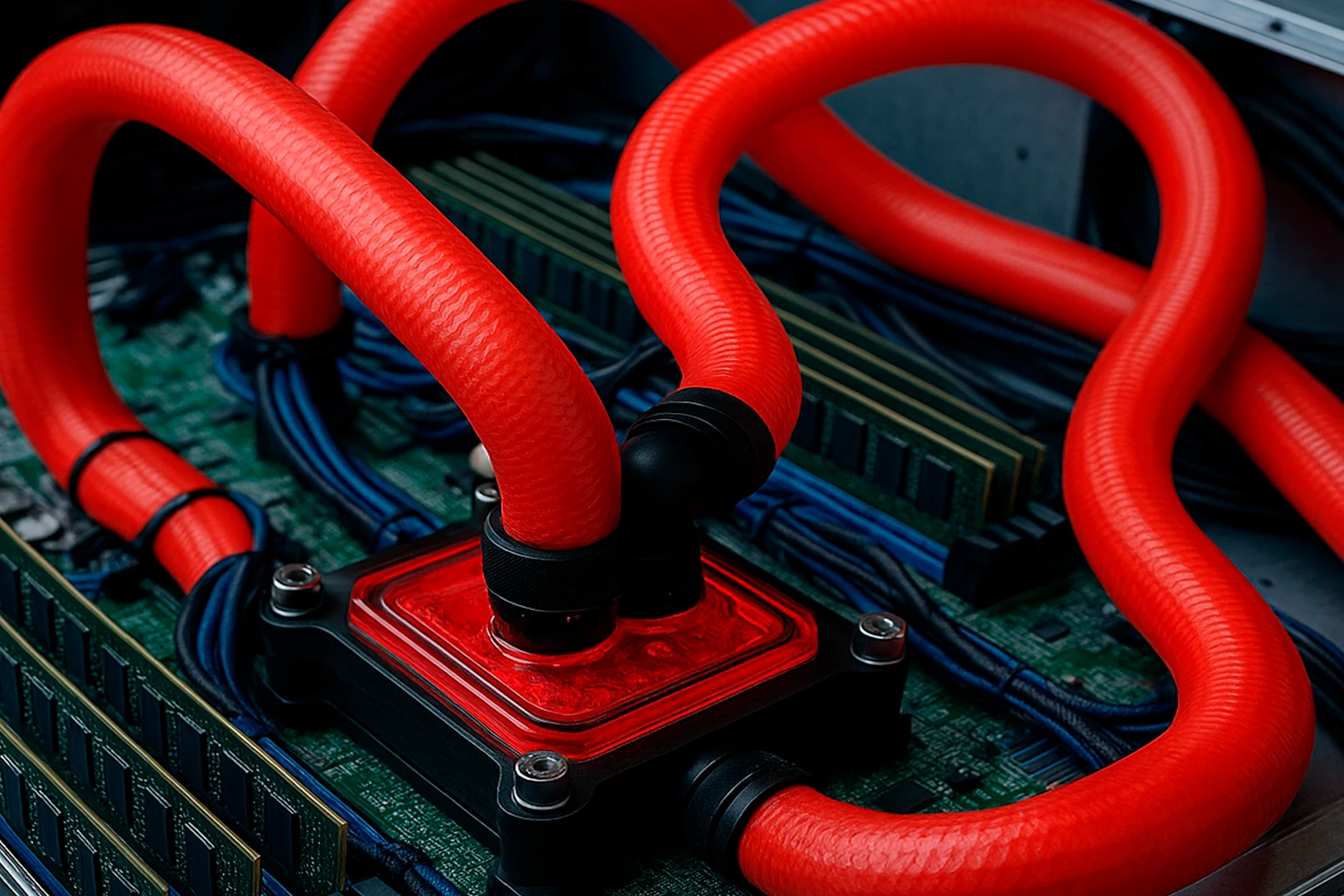

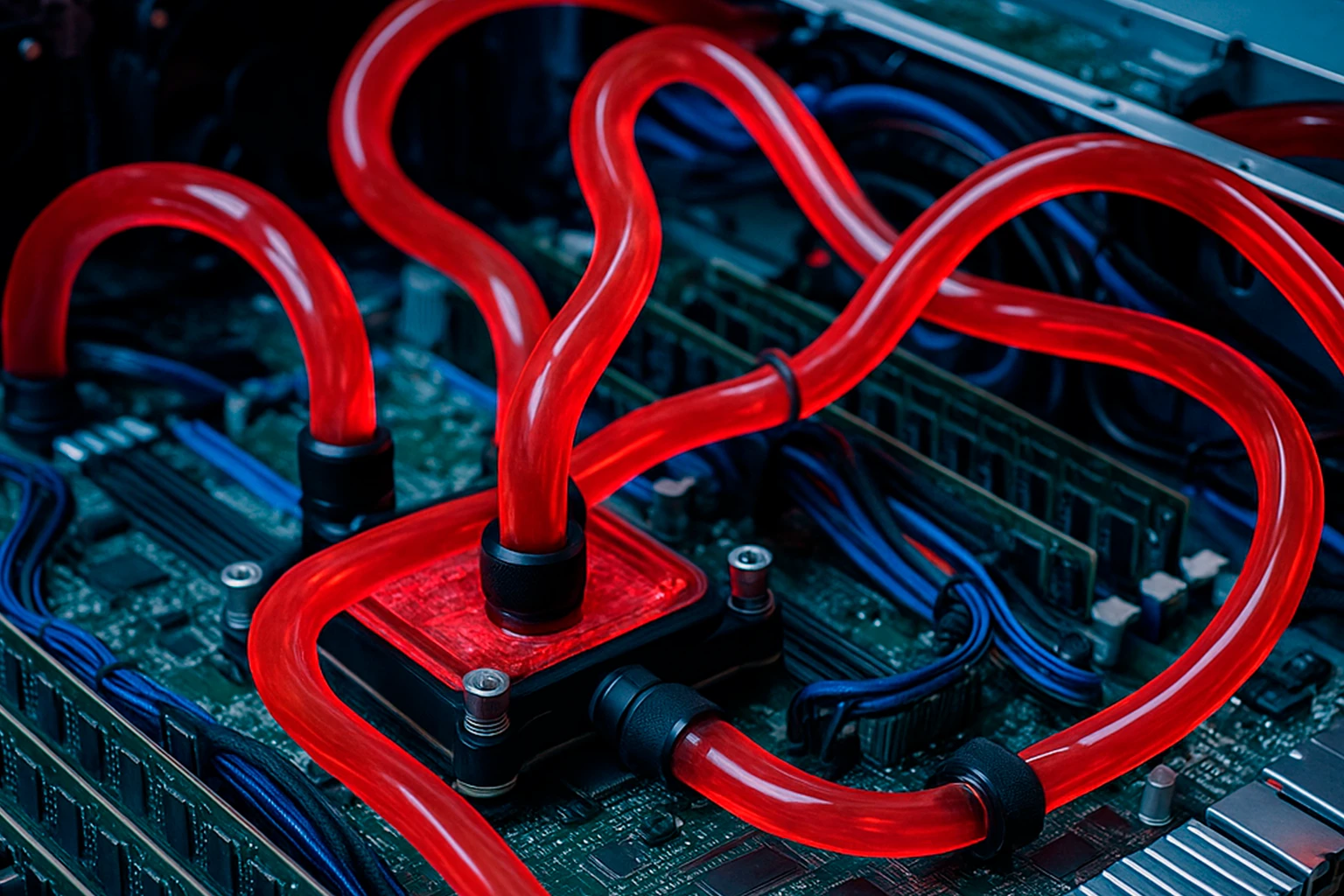

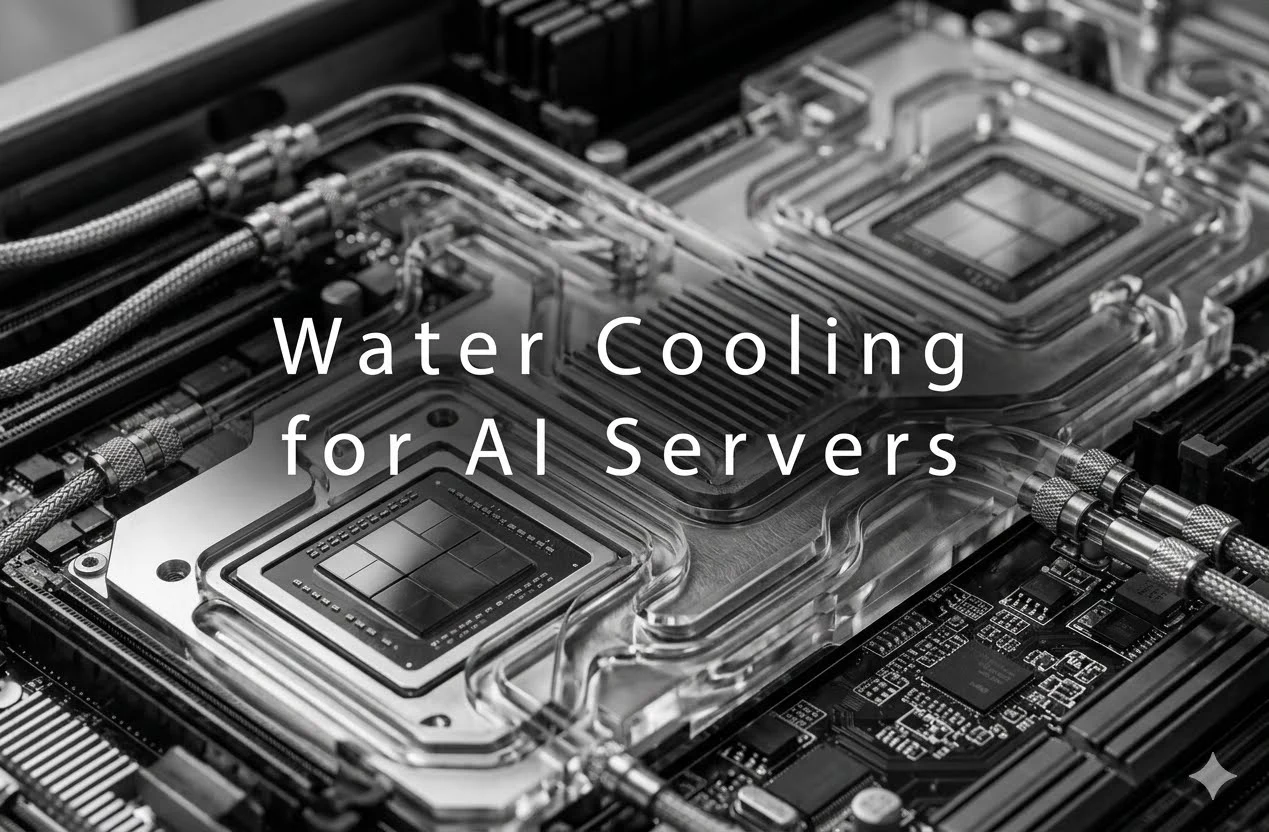

Direct-to-chip is the most widespread and versatile form of water cooling for AI servers. In this setup, liquid is delivered directly to GPUs, CPUs, and other critical components via dedicated cold plates.

Key advantages include:

• efficient heat removal from the hottest zones;
• compatibility with traditional server racks;
• gradual deployment without a complete data center redesign;
• the ability to combine liquid cooling with air cooling for secondary components.

This approach scales well and suits most AI clusters where high density is required but infrastructure flexibility must be preserved.

Immersion cooling

Immersion cooling involves fully submerging servers or individual nodes in a dielectric liquid. Heat is removed directly from all components without the use of fans.

The advantages of immersion cooling include:

• maximum equipment density;
• near-complete elimination of air cooling;
• reduced mechanical wear due to the absence of fans.

However, this approach requires significant changes to the operating model. Maintenance, component replacement, and vendor compatibility become more complex. As a result, immersion cooling is more commonly used in specialized AI farms and large-scale compute clusters.

Rear door heat exchangers

Rear door heat exchangers are installed on the back of a rack and cool the hot exhaust air using a liquid heat exchanger. This is a compromise solution between air cooling and direct liquid cooling.

It allows operators to:

• increase the allowable thermal load per rack;
• reduce the load on the central cooling system;
• introduce water cooling without modifying servers.

For AI infrastructure, this option is suitable when server modifications are not possible but higher rack density is required.

When water cooling becomes a practical necessity

Water cooling stops being an optional solution once the growth of compute density begins to conflict with the physical limits of air cooling. In practice, liquid cooling becomes necessary when:

• rack-level heat density exceeds the capacity of standard air aisle designs;
• GPUs and accelerators operate at or near maximum TDP on a regular basis;
• consistent performance without thermal throttling is required;
• cluster scaling is constrained by cooling rather than power or networking;
• operating costs for ventilation and air conditioning increase disproportionately.

In many projects, the decision to adopt water cooling is driven not by overheating itself, but by the inability to further increase computing capacity within the existing space. Liquid cooling makes it possible to raise density without expanding server halls or undertaking major data center реконstructions.

It is also important to note that water cooling does not necessarily imply a complete abandonment of air cooling. In hybrid designs, liquid removes heat from critical components, while air cooling is used for secondary elements. This approach simplifies deployment and reduces risk.

Performance, stability, and efficiency impact

The primary advantage of water cooling for AI servers is not only lower temperatures, but precise control over the thermal regime. For AI workloads, stability is often more important than peak performance.

The benefits delivered by liquid cooling include:

• elimination of thermal throttling under sustained load;
• more stable GPU and CPU clock frequencies;
• predictable job execution times;
• reduced energy consumption by auxiliary systems.

When temperatures are kept out of risk zones, servers no longer compensate for overheating by reducing performance. This is particularly evident in model training, where even small frequency fluctuations can lead to significant delays over long compute cycles.

From an energy efficiency perspective, water cooling reduces the load on fans and air conditioning systems. A portion of the heat can be rejected at higher coolant temperatures, opening up opportunities for heat reuse or more efficient heat exchange at the building level.

Reliability, risks, and operational considerations

Liquid cooling is traditionally perceived as a higher-risk solution compared to air cooling. However, in modern AI infrastructures, the primary risks are associated not with the technology itself, but with improper design and operation.

Key reliability factors include:

• the use of sealed connections and certified components;
• multi-level monitoring of system parameters;
• automatic shutdown in the event of anomalies;
• redundancy of critical elements.

In practice, when implemented correctly, water cooling can be even more predictable than air cooling. Thermal conditions remain stable, there are fewer moving parts, and the load on fans and power supplies is reduced.

From an operational perspective, maintenance processes are critical. Personnel must be trained to work with liquid cooling systems, and equipment replacement procedures need to be adapted to the specific cooling approach. This is especially relevant for immersion cooling, where access to components requires additional time. At the same time, for most AI clusters using direct-to-chip cooling, the operational model remains close to that of traditional server environments.

Water cooling vs air cooling for AI servers

The comparison between water cooling and air cooling for AI servers is not about choosing which is “better,” but about scalability and predictability.

• Air cooling remains a justified solution for moderate density and irregular workloads. It is simpler to operate and does not require additional engineering loops. However, as heat density increases, its efficiency declines, and the cost of maintaining acceptable temperatures grows faster than computing capacity.
• Water cooling, by contrast, demonstrates clear advantages in scenarios involving high density and sustained workloads. It enables thermal control at the chip level, reduces reliance on airflow, and provides greater flexibility in AI cluster design.

For modern AI workloads, this often translates into a choice between limiting growth and adopting a more efficient cooling model.

Where water cooling delivers the highest ROI

Water cooling delivers the greatest return in infrastructures where heat becomes the primary limiting factor.

Typical high-ROI scenarios include:

• GPU clusters for model training;
• AI inference environments with high accelerator density;
• scalable AI platforms with predictable workload growth;
• projects constrained by available data hall space;
• infrastructures with high air conditioning and cooling costs.

In these cases, water cooling either enables higher compute density without data center expansion or reduces operating expenses through more efficient heat removal. In practice, the benefit often comes from a combination of both factors.

Conclusion: scaling AI infrastructure with liquid cooling

AI workloads are reshaping the requirements for server infrastructure faster than any previous technology wave. The limitations of air cooling become apparent at very early stages of AI cluster growth.

Water cooling makes it possible to operate at high density, maintain stable performance, and plan scaling without a constant struggle against heat. For many AI projects, this is not an experiment or an exotic option, but a logical next step in infrastructure evolution.

Understanding when and how to apply liquid cooling is becoming a critical part of architectural decision-making for modern AI servers.
