High Quality Enameled Copper Wire

by Victor

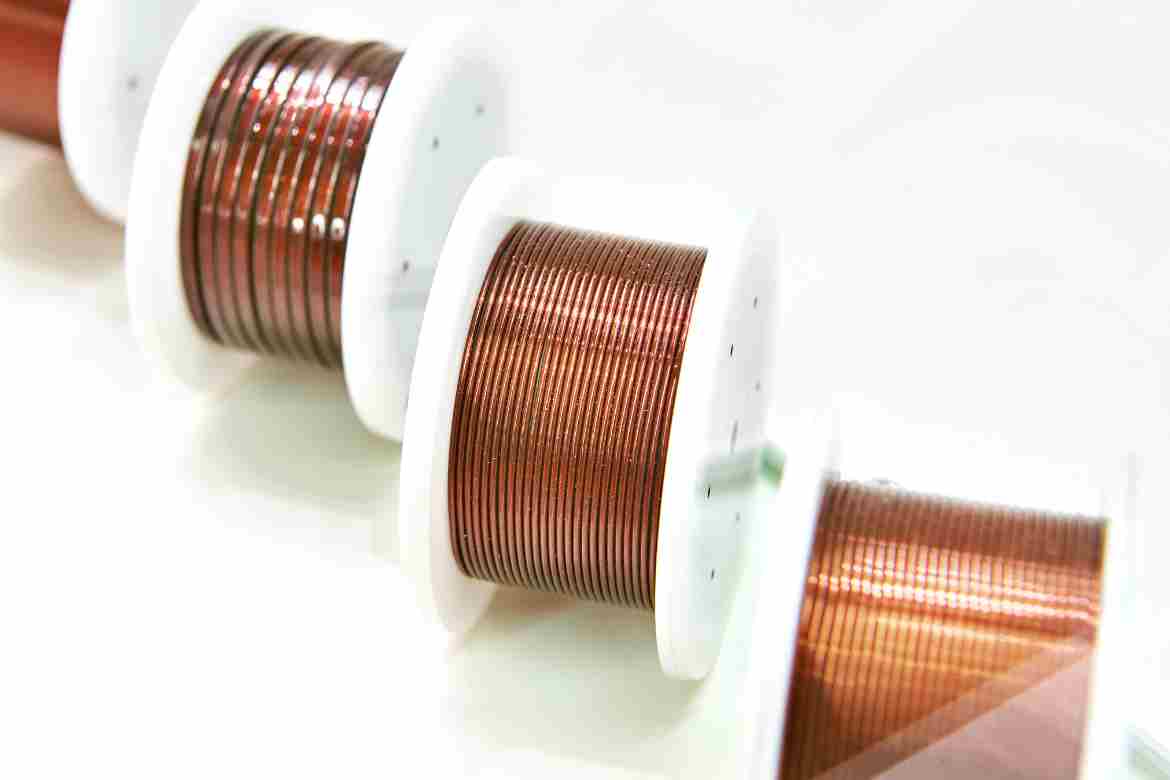

What is enameled copper wire?

Enameled copper wire is a type of wire coated with a thin layer of insulation, typically made of enamel. The enamel insulation serves to protect the copper wire from environmental factors such as moisture, chemicals, and abrasion. This type of wire is commonly used in electrical applications where a thin and insulated wire is required, such as in transformers, motors, electromagnets, and inductors. The enamel insulation allows the wire to be tightly wound without risk of short circuits between adjacent turns.

How to make enameled copper wire?

Making enameled copper wire involves a specialized process that requires some equipment and expertise. Here’s a general outline of the process:

Prepare the Copper Wire: Start with high-quality copper wire. The wire should be clean and free of any contaminants. It’s often best to use a wire that has been drawn to the desired diameter.

Apply the Insulation: The most common insulation material for enameled copper wire is enamel, which is a type of polymer. The wire is passed through a series of baths or coating stations where the enamel insulation is applied. This can be done by dipping the wire into a vat of enamel or by passing the wire through a nozzle where the enamel is sprayed onto it.

Curing: After the enamel is applied, the wire needs to be cured to harden the insulation. This is typically done by passing the wire through an oven or furnace where it is heated to a specific temperature for a set amount of time. The curing process helps the enamel to bond securely to the copper wire and form a durable insulation layer.

Cooling and Testing: Once the wire has been cured, it is allowed to cool down. After cooling, the wire may undergo testing to ensure that the insulation meets the required specifications for electrical conductivity, insulation resistance, and other properties.

Cutting and Spooling: Finally, the wire is cut to the desired length and wound onto spools for storage and transportation.

If you want to learn, check What’s the Difference between Enameled Aluminum Wire and Enameled Copper Wire?

Enameled copper wire vs copper wire

The primary difference between enameled copper wire and bare copper wire lies in their insulation. Here’s a comparison:

1.Insulation: Enameled copper wire is coated with a thin layer of insulation, usually made of enamel, polymer, or resin. This insulation protects the copper wire from environmental factors such as moisture, chemicals, and abrasion. Bare copper wire, on the other hand, lacks this insulation and is simply a solid or stranded copper conductor.

2.Applications: Enameled copper wire is commonly used in electrical applications where insulation is necessary to prevent short circuits and electrical failures. It is used in devices such as transformers, motors, electromagnets, inductors, and coils. Bare copper wire is often used in applications where insulation is not required, such as grounding wires, electrical connections within appliances, and in some electronic circuits where insulation is provided by other means.

3.Flexibility: Enameled copper wire can be more flexible than bare copper wire of the same gauge due to the insulation layer, which can provide some additional protection against bending and stress. However, the flexibility of both types of wire can vary depending on the specific construction and gauge.

4.Resistance: Enameled copper wire typically has higher electrical resistance compared to bare copper wire of the same gauge, due to the presence of the insulation layer. This can be a consideration in applications where low resistance is critical.

LP Industry is one of enameled copper wire manufacturers in China, mainly produces 4awg – 53awg magnet copper winding wire, and 14/18/24/26/28/30 awg enameled copper wire is popular used for transformer windings and motor windings.

Sales: Nell

Whatspp: 0086-19337889070

Email: office@cnlpzz.com

Add: Jinshui District, Zhengzhou, China

Web: lpenamelwire.com
